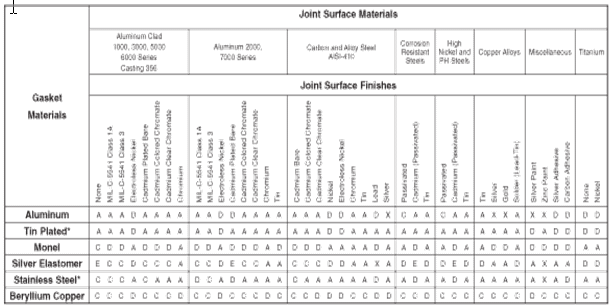

[Spira]材料说明与兼容性

材料

材质/工艺

规范说明

储藏温度

工作温度

螺旋管

铍铜

ASTM-B-194

Ambient

-73 to 232° C
-100 to 450° F

不锈钢

AMS-5906

Ambient

< 704° C
< 1300° F

电镀

化学薄膜

AMS-C-5541 Class 3

Ambient

< 66° C, < 150° F

金

AMS-G-45204, Type II, Grade C, Class 1

Ambient

< 274° C
< 525° F

纯锡 (RoHS)

ASTM-B-545

Ambient

< 150° C
< 302° F

纯锡 (蜂窝)

ASTM-B-545

Ambient

< 150° C
< 302° F

锡-铅

90% Tin, 10% Lead per AMS-P-81728

Ambient

< 150° C
< 302° F

Electroless 镍

Mil-C-26074

Ambient

< 649° C
< 1200° F

Sulfamate 镍

Mil-C-27074

Ambient

< 649° C
< 1200° F

橡胶

EPDM (固态)

ASTM D2000 M3 BA

Ambient

-80 to 275° C, -112 to 527° F

氟硅氧烷 (固态)

Blue per AMS-R-25988, Type II, Class I, Grade 40

Ambient

-62 to 204° C
-80 to 400° F

氟硅氧烷 (泡棉)

AMS-3323

Ambient

-62 to 204° C
-80 to 400° F

氯丁橡胶 (泡棉)

ASTM-D-6576, Type II, Grade A, Condition-Medium

Ambient

-54 to 121° C
-65 to 250° F

PVC 芯

Black per MIL-I-631, Grade C, Class I, Category I, Type F, Form Ua, 80 Shore

Ambient

-30 to 160° C
-22 to 320° F

硅树脂 (固态)

A-A-59588, Class 2B, Grade 40 or 60. See product spec sheet for grade

Ambient

-38 to 204° C
-100 to 400° F

硅树脂(泡棉)

Red per ASTM-D-6576, Type II, Grade C, Condition-Medium

Ambient

-38 to 204° C
-100 to 400° F

热塑橡胶

ASTM-D-2000CA710, C32, EA14, F19

Ambient

-80 to 275° C
-112 to 527° F

粘合剂

环氧

2216 B/A per ASTM-D-2000

Ambient

-80 to 275° C
-112 to 527° F

氟硅氧烷(红色)

Dow Corning Q4-2817 Sealant

≤ 32° C

-57 to 260° C
-71 to 500° F

氟硅氧烷(Endur-o-Shield 内芯)

Dow Corning 730 RTV
MIS-24298

≤ 32° C

-57 to 260° C
-71 to 500° F

氯丁橡胶
(粘接)

MMM-A-1617, TYPE II

-16° to 27°C

-67 to 177° C
-89 to 351° F

硅树脂(Endur-o-Shield 标准内芯))

Dow Corning 732 RTV Per MIL-A-46106, Group I, Type I

≤ 32° C

-60 to 177° C
-76 to 351° F

硅树脂(Endur-o-Shield 不锈钢衬垫)

Dow Corning 737

≤ 32° C

-65 to 177° C, -85 to 351° F

硅树脂(无醋酸基)

Dow Corning 3145 RTV Per MIL-A-46146, Group II, Type I

≤ 32° C

-50 to 200° C
-58 to 392° F

硅树脂(清底剂, 无除气作用)

Dow Corning 61104

≤ 32° C

-60 to 177° C
-76 to 351° F

其他

连接器体
6061-T4 铝

AMS-***-A-250/11.Chem film plated: AMS-C-5541, Class 3

Ambient

< 343° C
< 650° F

蜂窝框架

6061-T4铝,AMS-***-A-200/8

Ambient

< 343° C
< 650° F

蜂窝板 (铝)

铝 AMS-C-7438

Ambient

< 204° C
< 400° F

蜂窝板(铜)

Brass per ASTM-B-36/B 36M.Foil soldered together per ASTM-B-32

Ambient

< 230° C
< 446° F

燕尾槽铣刀

Titanium Nitride Coated Cobalt

Ambient

N/A

镙钉

Cadmium plated Aluminum AMS-***-P-416

Ambient

N/A
